Banked Curve With Friction Free Body Diagram. A box is placed on a horizontal surface. The radius of the curve is r, where r is measured parallel to the horizontal and not to the slanted surface.

Ch 5 Uniform Circular Motion from www.slideshare.net

The radius of the curve is r, where r is measured parallel to the horizontal and not to the slanted surface. K12.in.us) and then says in the vert. When a car is going 21.1 m/s on this curve, what minimum coefficient of static friction is needed if the car is to navigate the curve without slipping.

Source: www.coursehero.com

K12.in.us) gives the following free body diagram (source: Assuming an unbanked curve, find the minimum static coefficient of friction, between the tires and the road, static friction being the reason that keeps the car from slipping (see figure 2).

Source: www.hep.vanderbilt.edu

Assuming an unbanked curve, find the minimum static coefficient of friction, between the tires and the road, static friction being the reason that keeps the car from slipping (see figure 2). This simulation shows the connection between strength and motion, with friction.

Source: www.slideserve.com

Banked frictionless curve and flat curve with friction a car of mass 1500 from phys 250 at college of san mateo. Assuming an unbanked curve, find the minimum static coefficient of friction, between the tires and the road, static friction being the reason that keeps the car from slipping (see figure 2).

Source: www.ux1.eiu.edu

Strategy and solution for part 1 Fncg ffcg y fgce the horizontal net force is to the right, but it should be zero.

Source: www.slideshare.net

A banked curve is a turn in which the driving surface is not horizontal. The radius of the curve is r, where r is measured parallel to the horizontal and not to the slanted surface.

Source: crommunist.com

Greater speeds and smaller radii require more steeply banked curves—that is, larger values of θ. Then n cosθ = mg, n sinθ = mv 2 /r, tanθ = v 2 /(gr), v 2 = g*(300 m)*tan(30 o), v = 41.2 m/s.

Source: galvinconanstuart.blogspot.com

Force and motion of a single object are always related through newton’s second law, so this is a force or 2nd law problem. It refers to the required net force for circular motion.

What Is The Minimum Coefficient Of Friction Between Tires And Road That Will Allow Cars To Negotiate The Turn Without Sliding Off The Road?

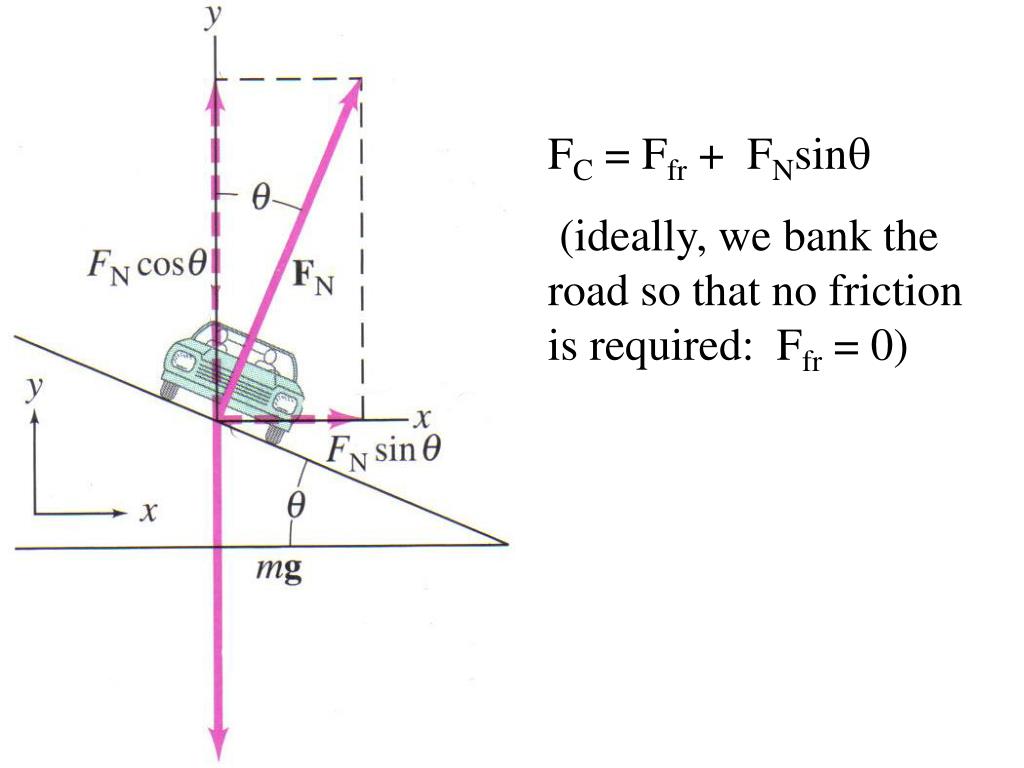

~ analyze vertically and horizontally to determine normal force, force of. ~ draw a free body diagram ~ they are really just like all other circular motion problems just remember to resolve vectors horizontally & vertically (not up & down the bank as you did for inclined planes). With that, the axes look like:

Without Friction, The Car Would Turn Its Wheels But Would Not Move In A Circle (As Is The Case On An Icy Surface).

Determine the magnitude and direction of. A drag racer drivers around a banked curve at 70mph with friction. A banked curve is designed for one specific speed.

Banked And Unbanked When A Car Goes Around A Curve, There Must Be.

When speeds are increased, the frictional force between the tire and the road is not enough to keep a car from spinning out, so the road is banked. K12.in.us) and then says in the vert. This physics video tutorial provides plenty of practice problems on banked turns with friction and without friction.

Which The Curve Is An Arc.

For a banked curve that will allow a car to travel in a curve of radius r with constant speed v and require no friction force. Banked curves in roads and racetracks are tilted inward (i.e. Figure 3 shows a free body diagram for a car on a frictionless banked curve.it is the friction force that supplies the centripetal force requirement for the car to move in a horizontal circle.

Homework Statement A Road With A Radius Of 74.8 M Is Banked So That A Car Can Navigate The Curve At A Speed Of 15 M/S Without Any Friction.

When a car is going 21.1 m/s on this curve, what minimum coefficient of static friction is needed if the car is to navigate the curve without slipping. The flaw is that you did not consider centripetal force. If the banked curve is icy so there is no friction force at all then traveling at higher than design speed means the.
