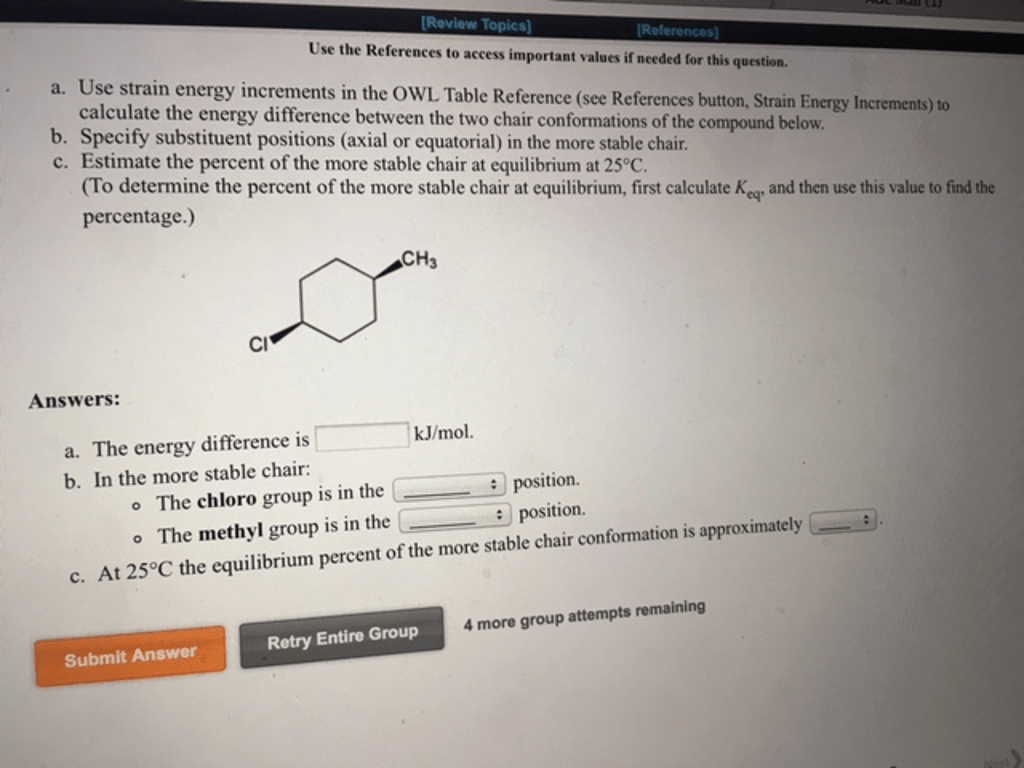

Solved Use Strain Energy Increments In The OWL Table Refe... from www.chegg.com

The first two are strength parameters; Most of us are quite conversant with the simple tension test which is the most common and is conducted to determine the yield strength, ultimate tensile strength, percent elongation and fracture strength of metals. Ε ult = s tu / e + ε f.

Source: www.chegg.com

When l is larger than l 0 (a) it is elongated and when l is shorter than l 0 (b) it is compressed. Ε ult = s tu / e + ε f.

Source: www.chegg.com

After this stage, the maximum force the material will withstand depends solely on how strong the atomic bonds are, which consequently depends on the type of bond in place (metallic, ionic. Ramberg, w., & osgood, w.

Source: www.slideshare.net

Most of us are quite conversant with the simple tension test which is the most common and is conducted to determine the yield strength, ultimate tensile strength, percent elongation and fracture strength of metals. The formula for calculating material stress:

Source: www.engineersedge.com

The elongation at which the load maximum occurs is known as uniform elongation. The first two are strength parameters;

Source: alexanderrt.weebly.com

The unit can be both displayed as n/m2 or pa, both of which represent pressure. True stress and true strain could be calculated using standard equations and then it can be plotted.

Source: www.totalmateria.com

In a tensile test, uniform elongation is the percentage the gauge length elongated at. True stress and true strain could be calculated using standard equations and then it can be plotted.

Source: www.thefabricator.com

Ε ult = s tu / e + ε f. The most common engineering approximation for yield stress is the 0.2 percent offset rule.

Source: www.admet.com

The unit can be both displayed as n/m2 or pa, both of which represent pressure. The dressed size of the post is 5.5 x 5.5 in and the compressive stress can be calculated as.

Source: www.homeworklib.com

Percent elongation is a measure of ductility. Y = (f/a) ÷ (∆l/l0)

Y = (F/A) ÷ (∆L/L0)

Strain is defined as deformation of a solid due to stress. Calculate the percent elongation using the following equation: The unit can be both displayed as n/m2 or pa, both of which represent pressure.

The Last Two Indicate Ductility.

It is a measurement of the percentage of increase in gauge length by measuring a fractured. The elongation at which the load maximum occurs is known as uniform elongation. Now every thing is known, put values in percentage elongation formula and find the percentage elongation as a result of pulling force;

When L Is Larger Than L 0 (A) It Is Elongated And When L Is Shorter Than L 0 (B) It Is Compressed.

/ initial gage length) x 100. When a gradually increasing force is applied to a material and the stress applied is plotted for the corresponding strain, then we will get the stress vs strain graph for that particular material. For determining the yield point;

The Elongation Is Calculated As The.

Where the graph is a curve, you will have to find out the equation of the curve and then integrate the curve within the limits of the graph. It is related to the ability of a plastic specimen to resist changes of shape without cracking. Most of us are quite conversant with the simple tension test which is the most common and is conducted to determine the yield strength, ultimate tensile strength, percent elongation and fracture strength of metals.

Strain Energy Per Unit Volume = 1/2 Stress X Strain.

Consider a rod of length l 0 and a cross sectional area a being stretched or compressed by a force f to form a new length l. Hence, area = 1/2 stress x strain. Σ = (30000 lb) / ((5.5 in) (5.5 in)) = 991 (lb/in 2, psi).
